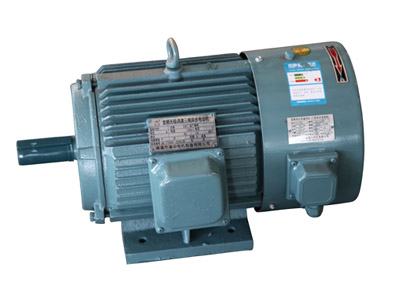

YE3VP series variable frequency speed regulating three-phase asynchronous motor is a variable frequency speed regulating three-phase asynchronous motor with frequency converter as the power supply. By changing the frequency of the power supply, the speed of the motor can be adjusted smoothly to achieve the purpose of energy saving and control automation.

YE3VP series motor has high efficiency, wide speed control range, high precision, stable operation, easy operation and maintenance, its installation size meets the International Electrotechnical Commission (IEC) standard, the shell protection grade is IP54, IP55, the norm is continuous duty system (S1) as the basis of continuous rating. It can also run in S3, S4, S5 working system. Its base structure and covert conversion type are B3 and B5. The motor of YBP-160M1 and below is self-fan-cooled, and the motor of Y2VP-160M2 and above has an external fan cooler. The rated voltage of the Y2VP series motor is 380V. Rated frequency is 50HZ, can be continuously adjustable in the range of 3 ~ 100HZ, 3 ~ 50HZ for constant torque operation, 50 ~ 100HZ for constant power operation. The motor adopts F class insulation. Y2VP series motor is suitable for driving steel rolling, lifting, transportation, machine tools, printing and dyeing, paper making, chemical, textile, pharmaceutical and other requirements of continuous and frequent positive and negative rotation of various mechanical equipment. It can be used with various inverter power supplies at home and abroad.
